$385.00

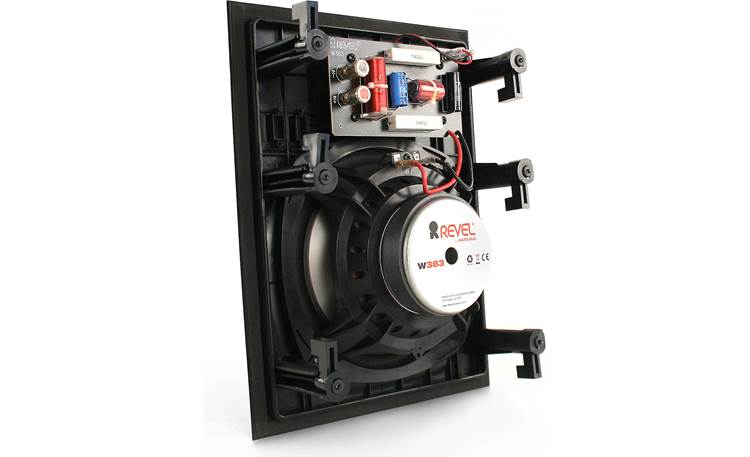

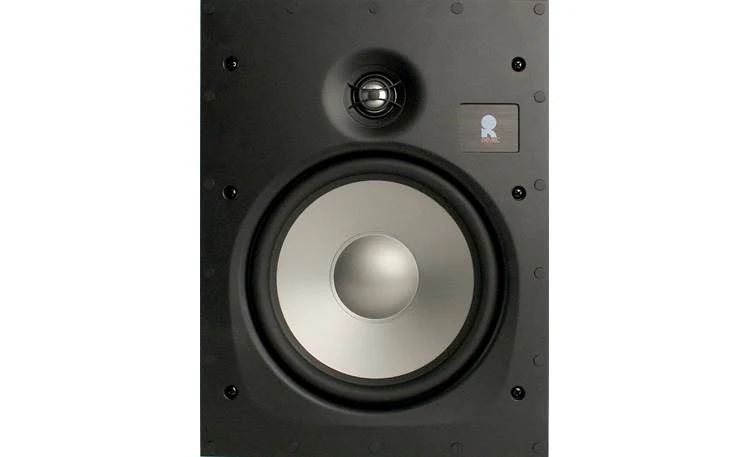

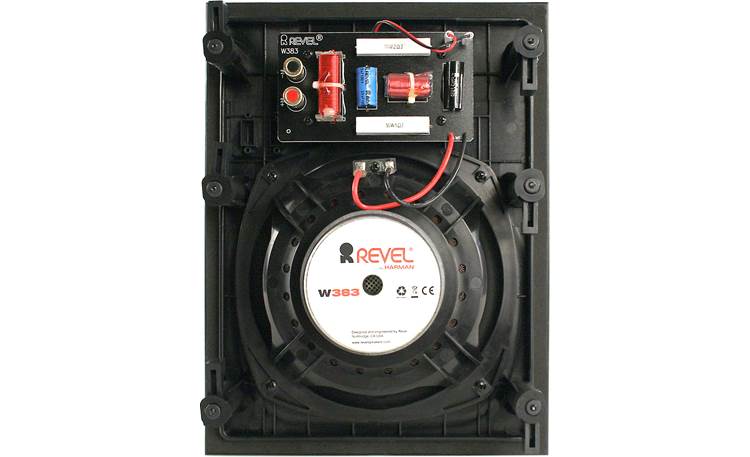

Revel W383 In-wall speaker - W383—
$385.00
The Story
8" Micro-Ceramic Composite (MCC) Cone, Cast- Polymer Frame Woofer
- 1" aluminum dome swiveling tweeter with waveguide
- Mounting depth: 3.7" (9.4 cm)
- Weight: 4.9 lb (2.2 kg) / Shipping weight: 6.3 lb (2.9 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 125 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 45Hz-22kHz; -10dB from 35-30kHz
- 1" aluminum dome swiveling tweeter with waveguide
- Mounting depth: 3.7" (9.4 cm)
- Weight: 4.9 lb (2.2 kg) / Shipping weight: 6.3 lb (2.9 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 125 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 45Hz-22kHz; -10dB from 35-30kHz
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
8" Micro-Ceramic Composite (MCC) Cone, Cast- Polymer Frame Woofer
- 1" aluminum dome swiveling tweeter with waveguide
- Mounting depth: 3.7" (9.4 cm)
- Weight: 4.9 lb (2.2 kg) / Shipping weight: 6.3 lb (2.9 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 125 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 45Hz-22kHz; -10dB from 35-30kHz
- 1" aluminum dome swiveling tweeter with waveguide
- Mounting depth: 3.7" (9.4 cm)
- Weight: 4.9 lb (2.2 kg) / Shipping weight: 6.3 lb (2.9 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 125 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 45Hz-22kHz; -10dB from 35-30kHz
